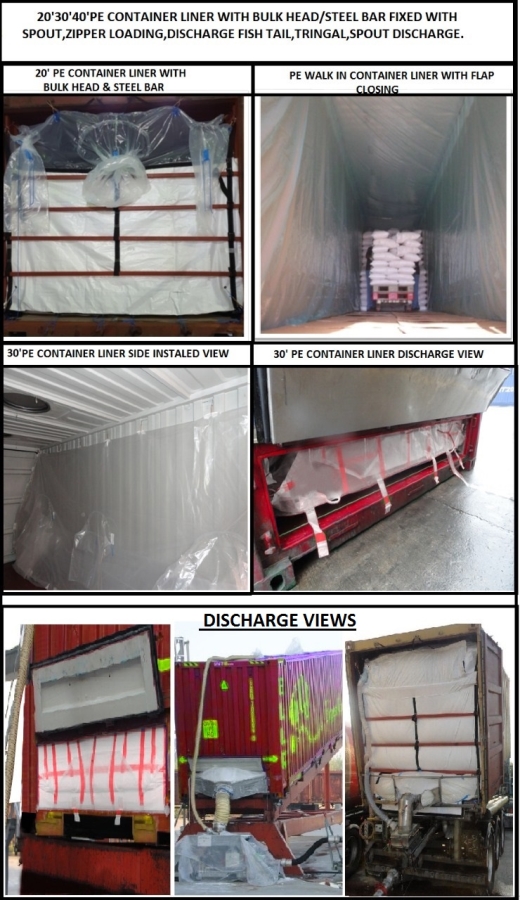

PE LINERS

Why Choose Container Liner Bag?

Container liners can transform your 20 or 40 foot container into an efficient transport system for bulk goods within ten minutes. With container liners , every ISO standard container can be used. For example, our customers use it for the following products: chemicals, petrochemicals, minerals, agricultural products, seeds and food products. Because the polypropylene fabric is attached to the inside of the container, the product does not touch the container itself. It creates an extra inner wall that protects the product and prevents any contamination.

Specifications of Container liner bag:

Dimension 20ft,30ft,40ft

Advantages of Container liner bag:

Comparison of commonly used ton bags, container liner bag increase the loading capacity andreduce the packaging costs.
Simple and time-saving loading and unloading operations, a lot of reduced working hours and labor costs.
Completely sealed, transported directly from the factory to the customer's warehouse, can effectively avoid pollution.
Because PE film, PP cloth characteristics, so the container will not pollution, reduce the clean-up operation.
Widely used in powder and granular products, suitable for shipping, land transport, train transport and so on.

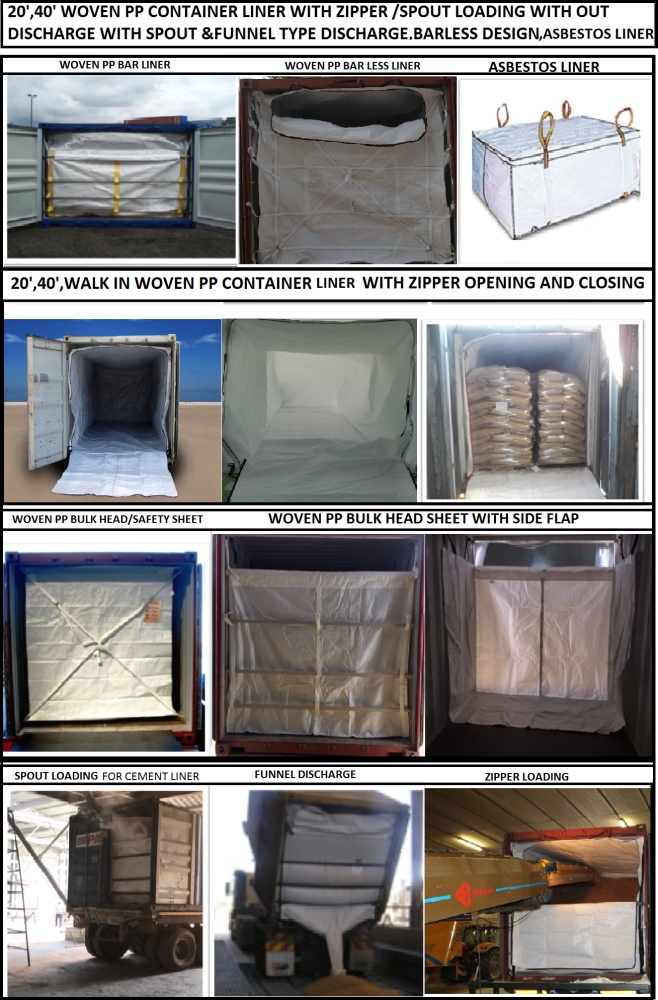

PP LINERS

Container liner, PP resin, chemical resin, PP Woven Container liner, also call sea bulk liner, dry bulk liner, liner bag for container, container bag, and dry liner; Easy loading and unloading, low costing and widely using for mining, chemical and various food industry.

Description:

There is usually two size of container liners, 20ft and 40ft. Compare with standard jumbo bag whose capacity is 5000-2000kg and PP small woven bags, the container liner are able to utilize maximally container space. It is possible to transport and stock 30% more product and save cost 50% at least than the standard jumbo bags and PP small woven bags.

Competitive Advantage:

Savings on packing costs than any other bags
Protect the product from moisture and contamination
Higher loading percentage
Lightweight liner (20 ft only 10 kg)
Minimized packing waste
Easy to install - less than 10 minutes
Time and labor savings due to efficient loading and discharge
Custom made design

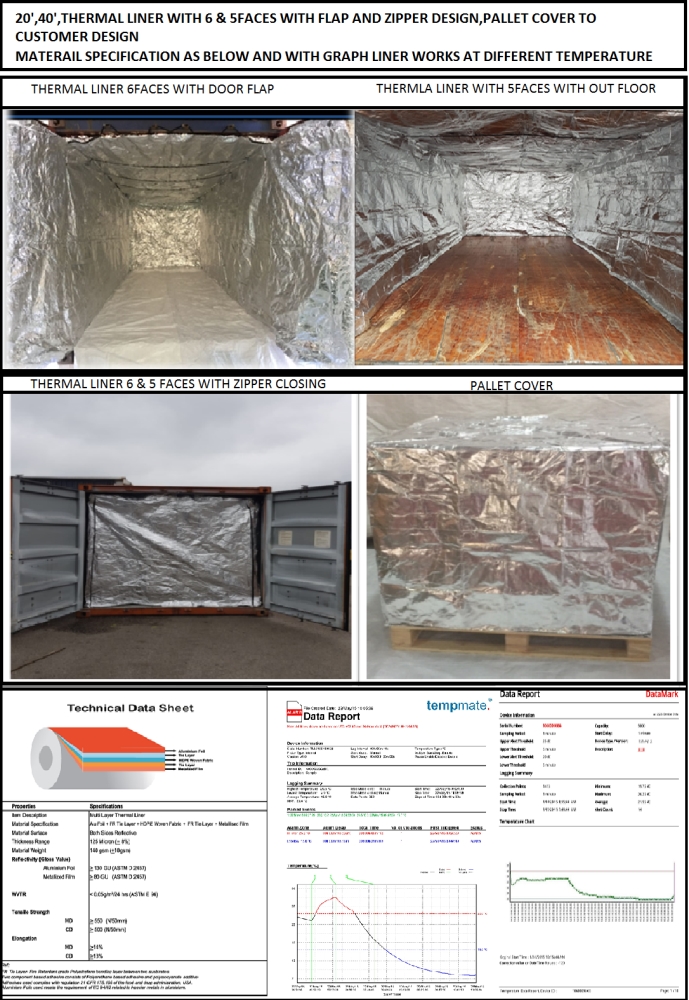

THERMAL CONTAINER LINER

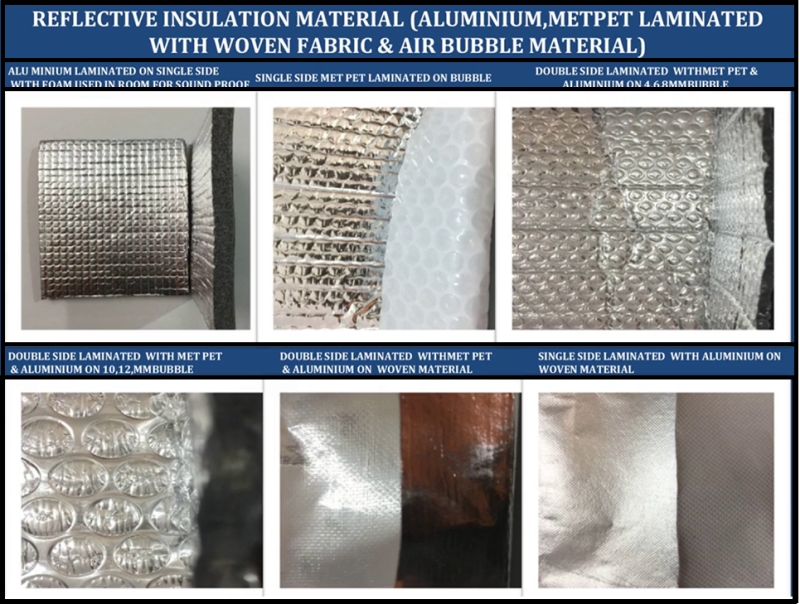

Thermal container liners are used inside a container to insulate the contents against temperature spikes experienced during shipping, by reflecting heat away from the load and keeping the internal temperature within an acceptable range.

Benefits:

Eliminates large variations in temperature in logistics settings thus minimising loss or spoiling of temperature-sensitive goods
Thermal container liners create an alternative to expensive refrigerated vehicles where refrigeration is not absolutely necessary
Food-safe materials are used in the manufacturing of thermal container liners
Can be fitted with ease on-site by two people in less than 10 minutes
Power Plastics thermal container liners are weldable, which means they can be custom-made to any variable client specification and are repairable, either on site or in our factory

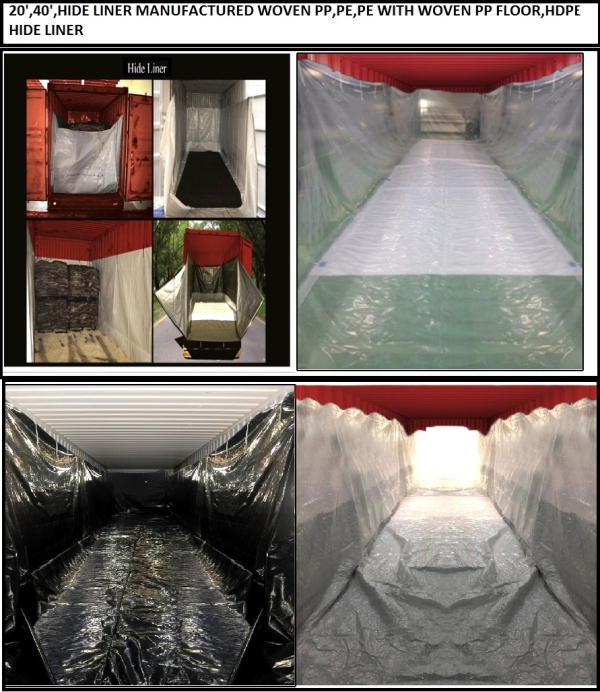

WET HIDE LINER

Used for transportation of waste product like meet, leather, skin etc., Especially manufature to assit with the transportation of difficulty cargo which may cause damage to shipping containers or result in the leakage of fluids on to shipping vessels.

Sutiable for open top and general purpose containers, the liner materials strenght fork lift truck can be used for loading operations.

The wet hide liner are stiched with webbing loops are provided with eyelets tied with strings, this strings tied to the container hook, and this liners are welded for a leak proof.

After completion of loading, as illustrated, the door end is tied off into an envelope style finish thus ensuring the container is protected from any possible leakage.

Advantage of hide liner

Reduce labour cost for cleaning of container.

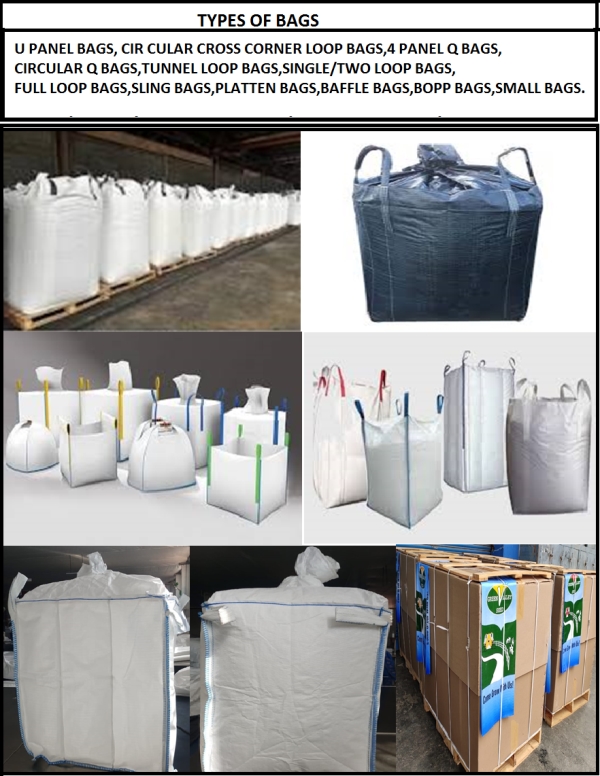

FIBC

A flexible intermediate bulk container (FIBC), bulk bag, or big bag, is an industrial container made of flexible fabric that is designed for storing and transporting dry, flowable products, such as sand, fertilizer, and granules of plastic.

FIBCs are most often made of thick woven polyethylene or polypropylene, either coated or uncoated, and normally measure around 110 cm or 45–48 inches in diameter and varies in height from 100 cm up to 200 cm (39 to 79 inches). Its capacity is normally around 1000 kg or 2000 lbs, but the larger units can store even more. A bulk bag designed to transport one metric ton of material will itself only weigh 5–7 lbs. Transporting and loading is done on either pallets or by lifting it from the loops. Bags are made with either one, two or four lifting loops. The single loop bag is suitable for one man operation as there is no need for a second man to put the loops on the loader hook. Emptying is made easy by a special opening in the bottom such as a discharge spout, of which there are several options, or by simply cutting it open.

Electrostatic Properties:

Type – A – no special electrostatic safety features
Type – B – Type B bags are not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolts or less.
Type – C – Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric used contains conductive threads or tape.
Type – D – Anti-static FIBCs, essentially refers to those bags which have anti-static or static dissipative properties without the requirement of grounding.

Uses to Transport:

Chemicals
Pharmaceutical Drugs
Fertilizers
Fiberglass
Food Products
Grains
Shotcrete
Construction materials (sand, gravel)
Pigments
Plastics
Refractories
Seeds
Peanuts
Starch
Hazardous Waste Material - UN Rated[1]

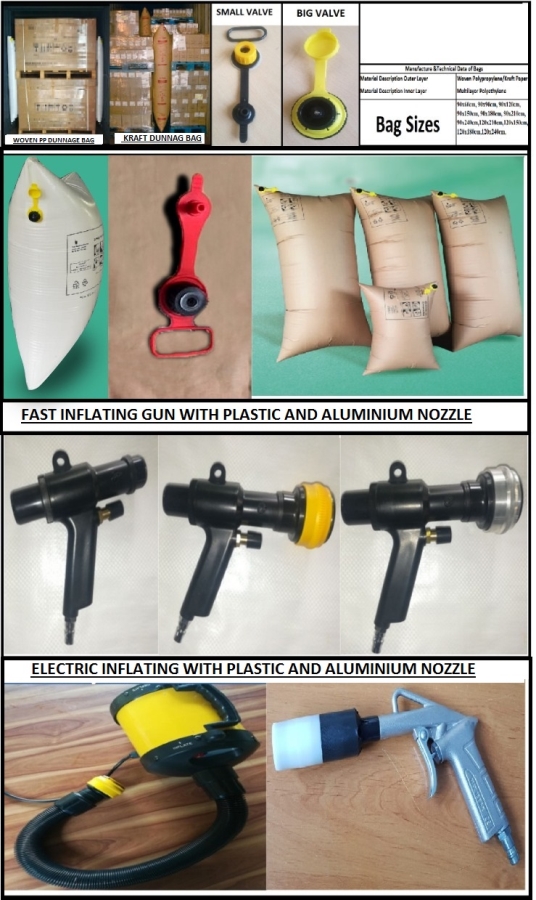

DUNNAGE BAGS

Advantages of Dunnage Bags:

Savings in Cost
Protection

Dunnage Bags protect Cargo from getting damaged by reducing impact and absorbing shock.

Performance :

Dunnage bags are inserted into void spaces inside the Containers, Rail Cars or Trucks and are then inflated with compressed air to the recommended level. As the bag is inflated, it gently pushes between pallets, places it against the walls of the Container. This creates solid tight control to the load and prevents any future movements, thus reducing the risk of damage greatly during transit.

We manufacture Kraft & Woven Dunnage Bags
